Oven - Replace heating element

Difficulty: Moderate

Estimated time: ± 30 minutes

Want to replace your oven's heating element, but not sure how? This step-by-step plan will have you up and running in no time!

Video Step-by-step plan

Instruction video

Step-by-step plan

Tool

Screwdriver

Product

Heating element

Always first:

Unplug the oven.
Tip: When disassembling the old part, take regular pictures, so you can easily see how to reassemble the new part.

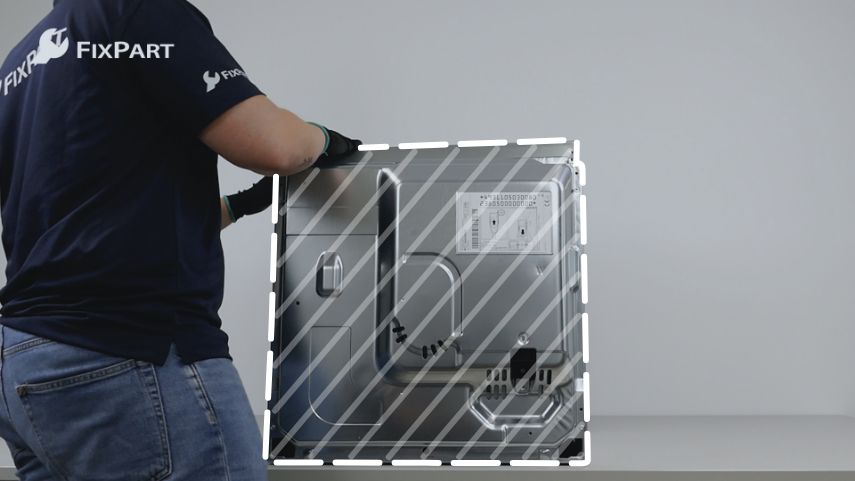

1. Remove the oven housing.

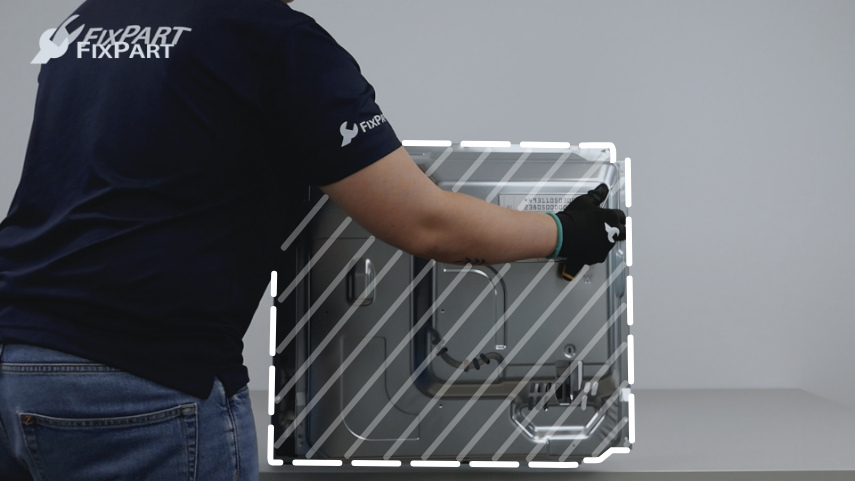

To remove the grill element from the oven, you will first need to remove the casing. Unscrew the screws of the top plate. Then carefully lift the top plate off the oven. Next, unscrew the screws of the back plate as well so that you can remove it as well.

2. Remove the old grill element.

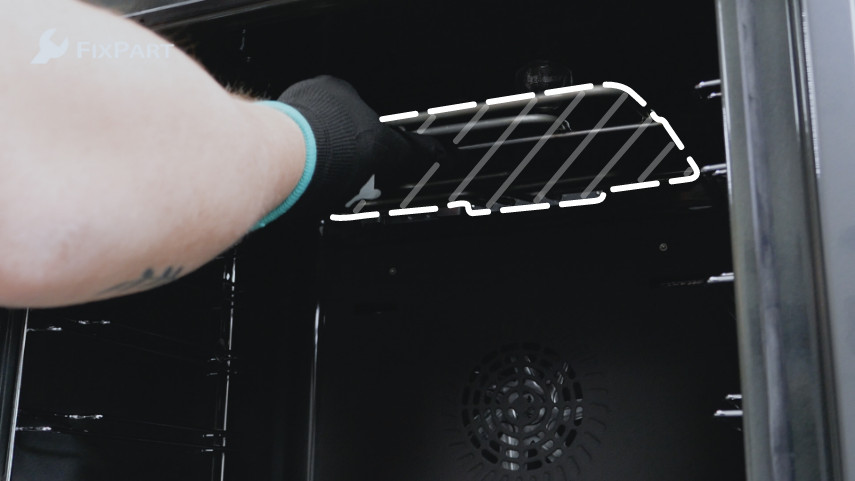

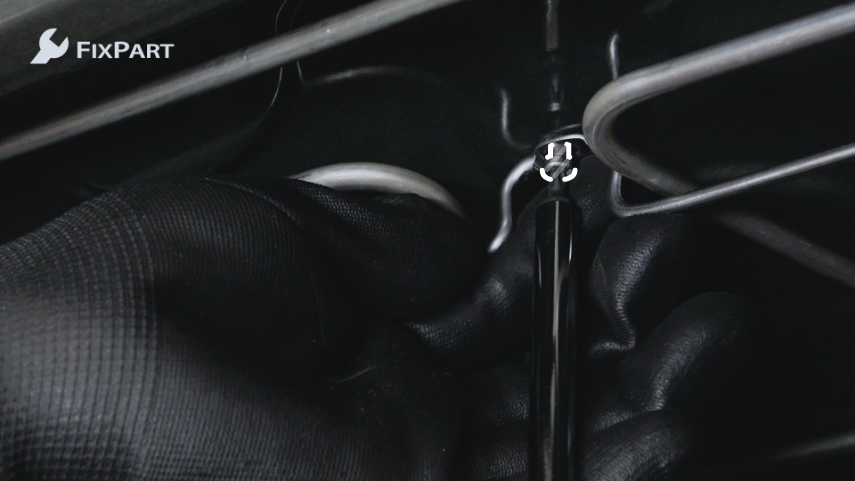

First, disconnect the wiring from the grill element, which is at the backside of the oven. Remember to wear gloves when disconnecting the wiring, as the glass wool causes a lot of irritation to the skin. Next, unscrew the screws hidden under the glass wool. Next, move to the inside of the oven and remove the baking tray and grates so that you can easily reach the grill element. This is fixed at the top of the oven with a screw. Unscrew it and remove the old grill element from the oven.

3. Insert the new grill element.

Place the new grill element where the old one was and screw it back in place. Then go to the back of the oven. Again, don't forget to wear gloves. Screw down the screws at the back of the grill element again. Then reconnect the wiring correctly.
