Oven - Replace handle

Difficulty: Moderate
Estimated time: ± 20 minutes

Want to replace the handle of your oven, but don't know exactly how to do it? No problem, with our instruction video or written out step-by-step plan you'll have it fixed in no time!

Video Step-by-step plan

Instruction video

Step-by-step plan

Tool

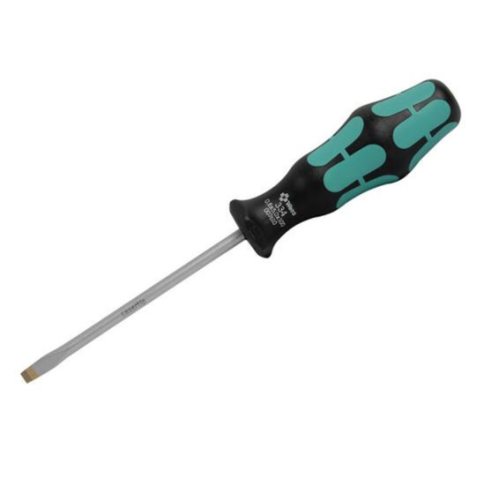

Screwdriver Screwdriver

Product

Handle/lever/handle Handle/lever/handle

Always first:

  • Disconnect plug from socket.
  • Tip: when dismantling the old part, take regular photos so you can easily see how to reassemble the new part.

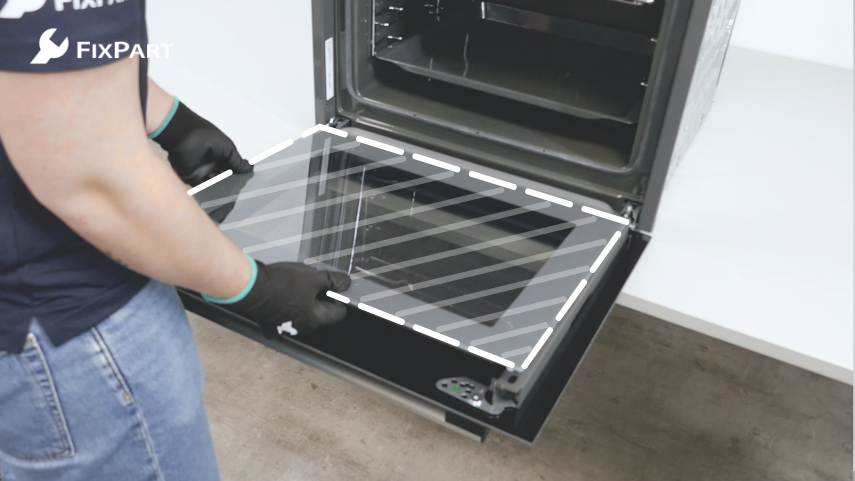

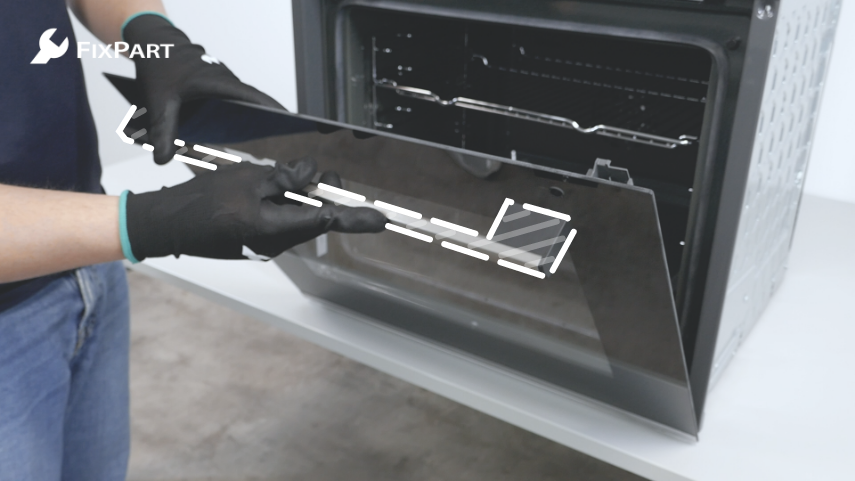

1. Remove the glass plate from the door.

Open the door. Loosen the lock of the glass plate and remove the glass plate from the door. Hold the door down to prevent slamming shut, or set it at a 45-degree angle.

Step image

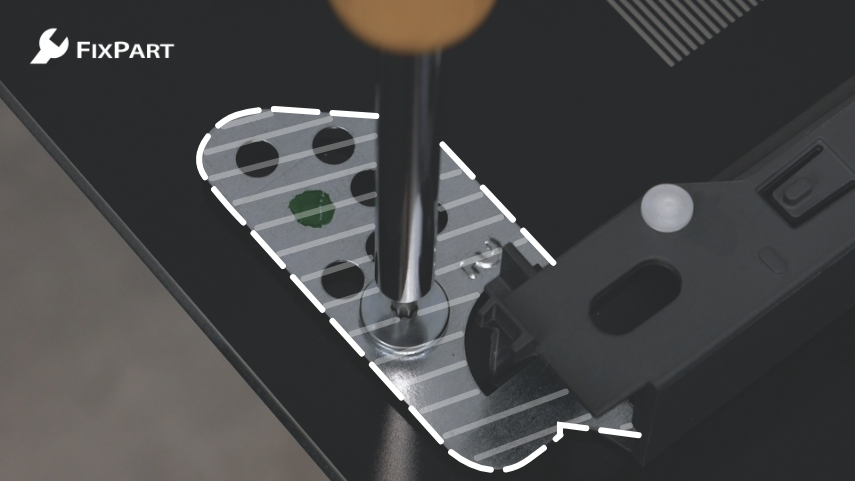

2. Remove the old door handle.

Loosen the screws of the door handle and remove the old door handle.

Step image

3. Insert the new door handle.

Insert the new door handle and tighten the screws again.

Step image

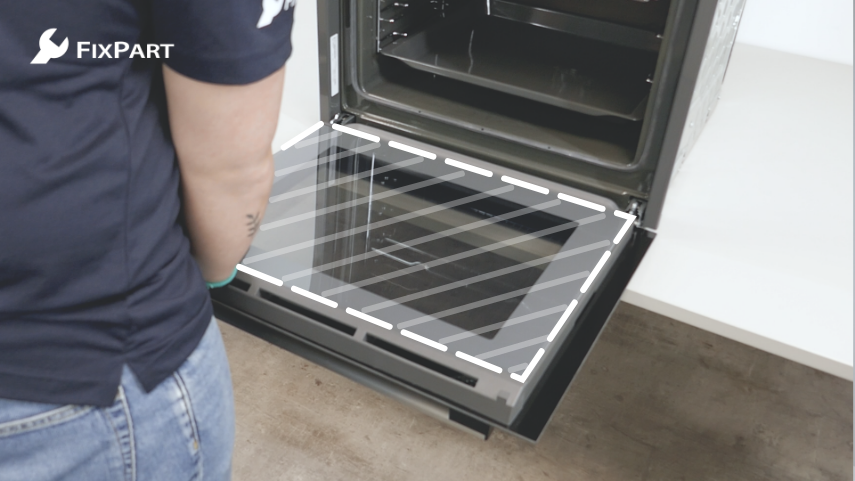

4. Replace the glass plate.

Replace the glass plate in the same place. Reattach the locking of the glass plate. Close the door.

Step image
