Microwave - Replace the fuse
Want to replace the fuse in your microwave but not sure how? No worries, with our instruction video or step-by-step guide, you'll have it sorted in no time!
Instruction video
Step-by-step plan
Tools
Product
Always first:
- Unplug from the socket.

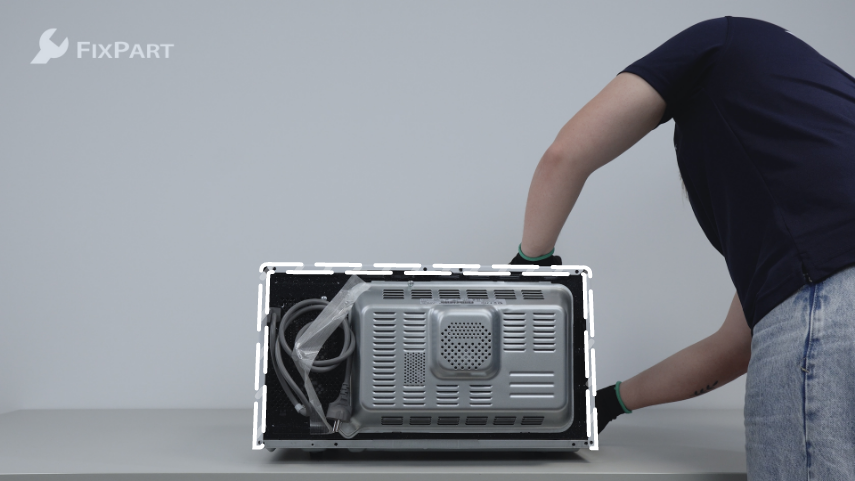

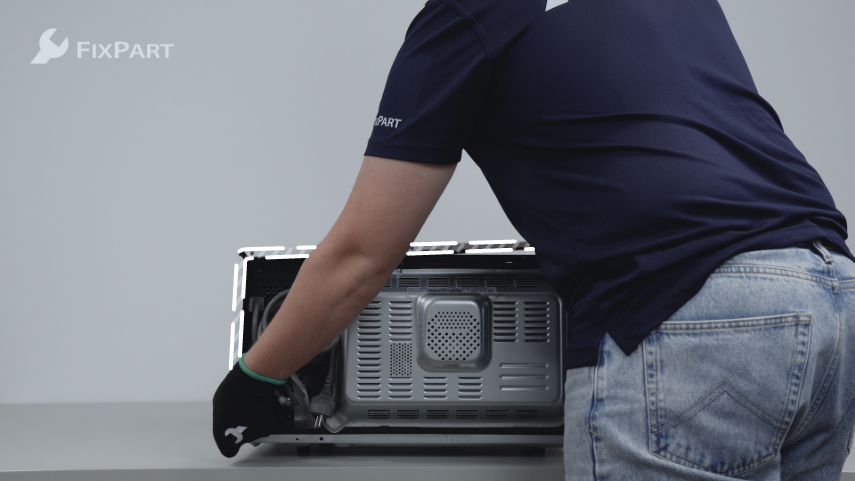

1. Remove the casing
Loosen the screws at the back. Pull the casing backwards and then lift it off to remove it.
2. Discharge the capacitor
Before you start the repair, it’s important to first discharge the capacitor. It can still hold a high voltage. Use a piece of insulated tool and carefully connect the two voltage terminals of the capacitor together.

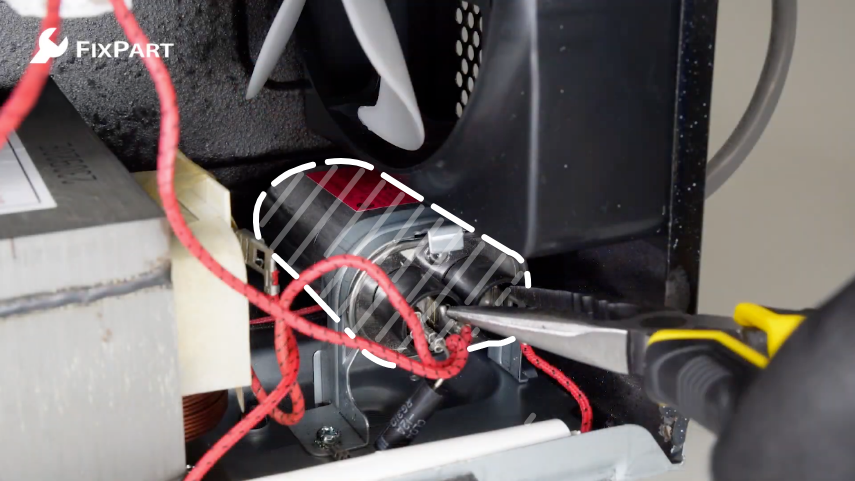

3. Remove the old fuse

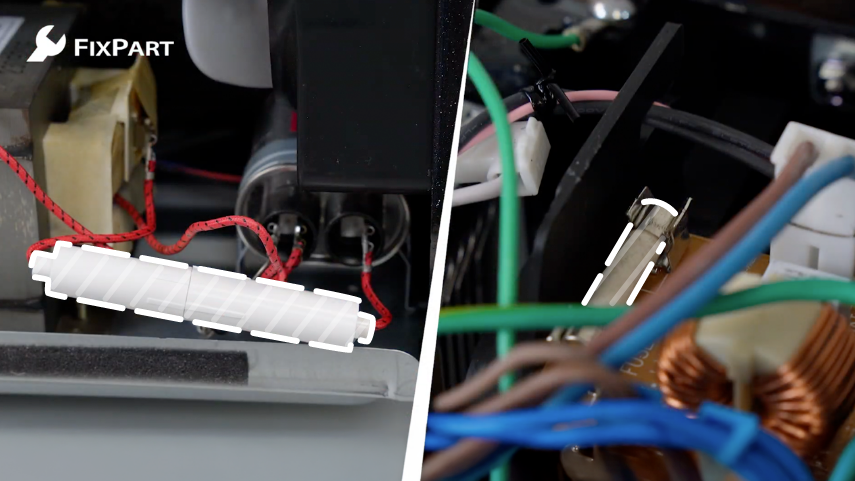

Fuse 1: A fuse can be mounted in different ways. In this microwave, the fuse is attached to the cables, but sometimes the fuse itself can be easily removed.
Fuse 2: The fuse is held in place by clips, use a small Allen key to pop it out of the clips.

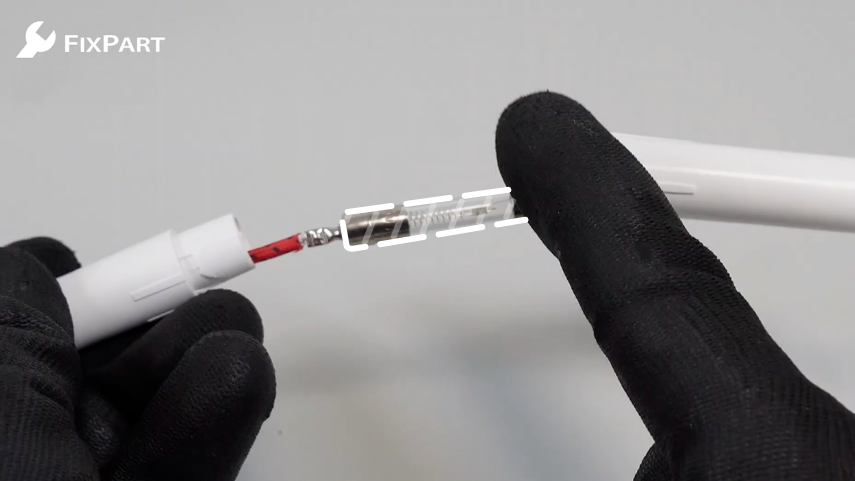

4. Place the new fuse
Put the new fuse in the place of the old one. And reconnect the cables to the right spot if needed.
