Air conditioner - Replacing a relay
Want to replace the relay of your air conditioner but not sure how? No worries, with our instruction video or written step-by-step guide, you'll have it fixed in no time
Instruction video
Step-by-step plan
Tools
Product
Always first:
- Unplug from the power outlet.

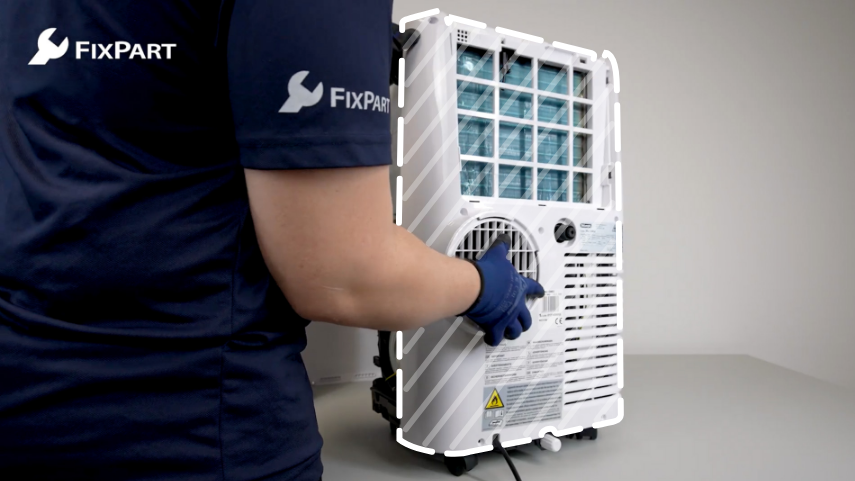

1. Remove the casing
First, unscrew the screws on the front and sides. Then remove the filter from the appliance. Next, unscrew all the screws at the back. Remove the water stop if needed. Carefully lift the casing and take it off.

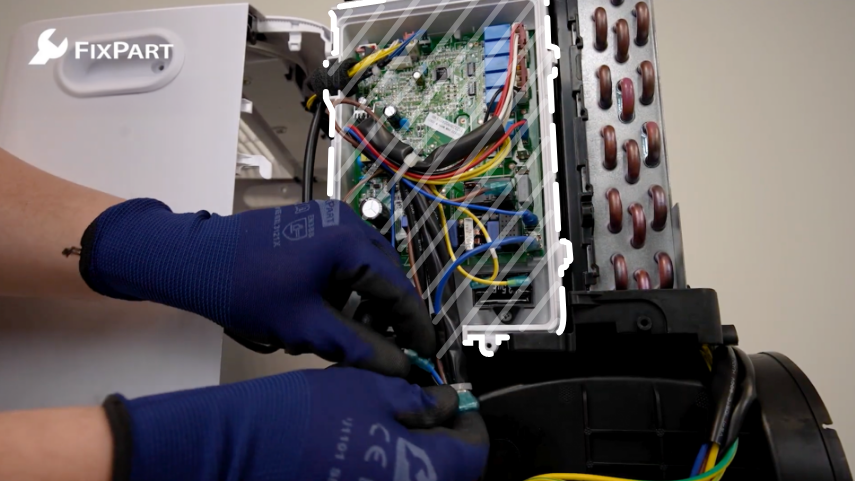

2. Remove the old relay
Remove the cover from the motherboard and disconnect the cables to the relay. Then undo the screw on the relay and take the relay out.

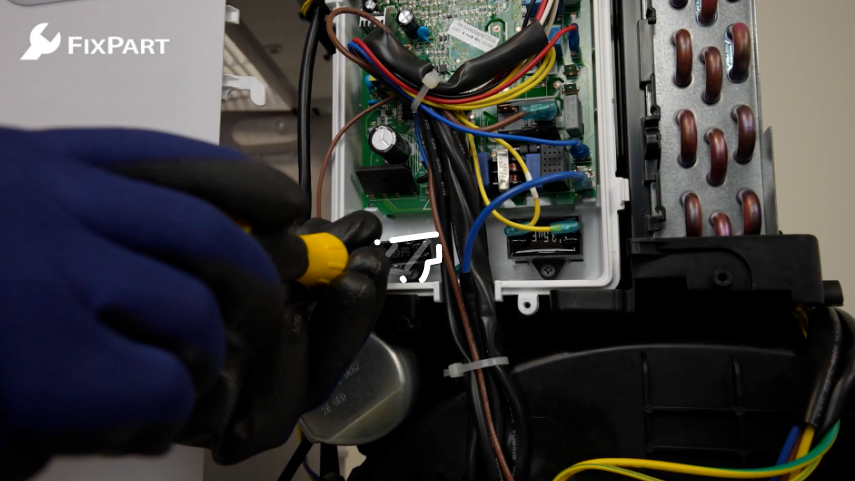

3. Fit the new relay
Put the new relay where the old one was and screw it back in place. Reconnect all cables in the right spots. Put the cover back on the motherboard and screw it back on.

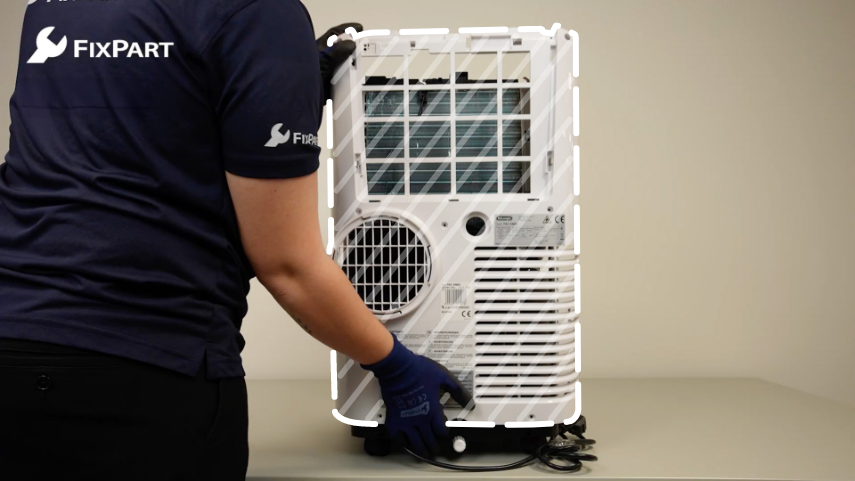

4. Put the casing back.
Put the casing back on the appliance. Tighten all screws at the back, sides, and front. Put the filter back and refit the water stop if needed.
