Air conditioner - Power cable replacement
Want to replace the power cable of your air conditioner but not sure how? No worries, with our instruction video or written step-by-step guide, you'll have it sorted in no time
Instruction video
Step-by-step plan
Tools
Product
Always first:
- Unplug from the socket.

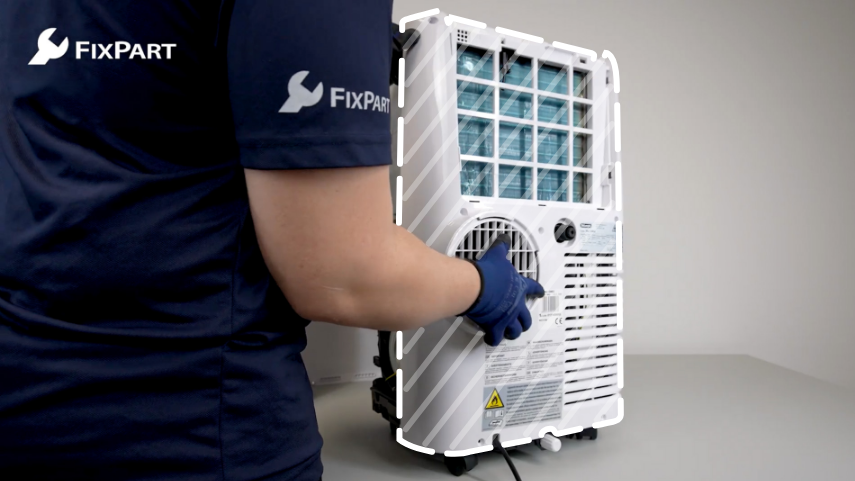

1. Remove the casing
First, unscrew the screws on the front and sides. Then remove the filter from the appliance. Next, unscrew all the screws at the back. Remove the water stop if needed. Carefully lift the casing up and take it off.

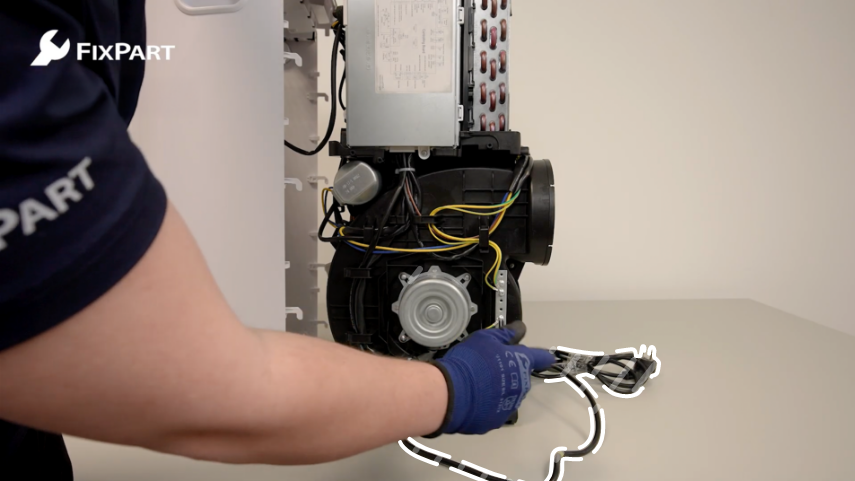

2. Remove the old power cable
Unscrew the screws on the cable holder. Disconnect the earth wire. Remove the cover from the motherboard and unplug the cables. You might want to take a photo, so you know where everything goes when putting it back.

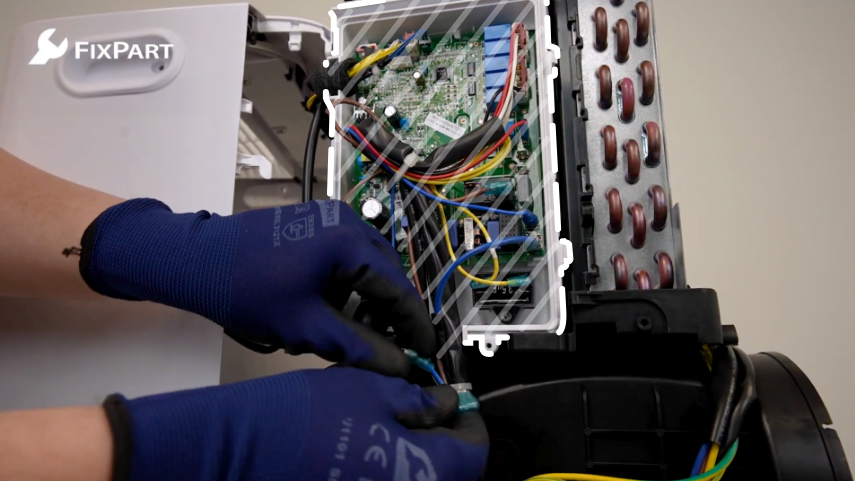

3. Fit the new power cable
Connect the new power cable to the same connection points as the old cable. Then put the cover back on. Reattach the earth wire. Secure the power cable in the cable holder.

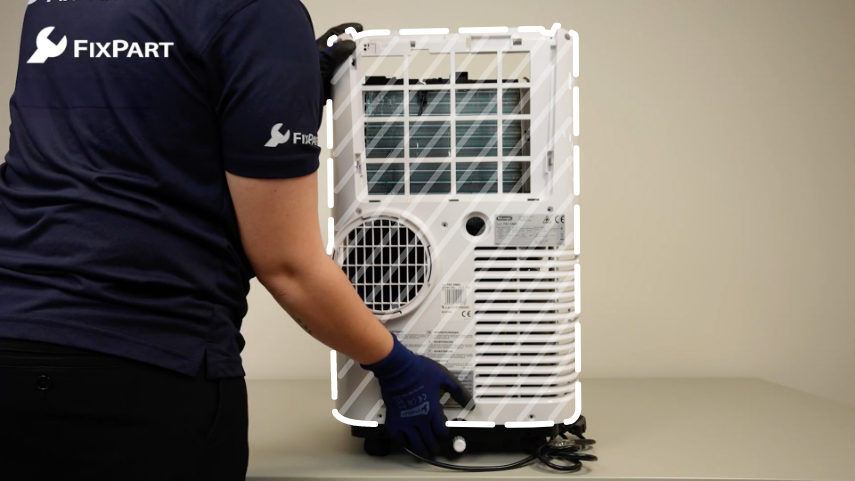

4. Put the casing back
Put the casing back on the appliance. Screw all the screws at the back, sides and front back in. Put the filter back and refit the water stop if needed.
